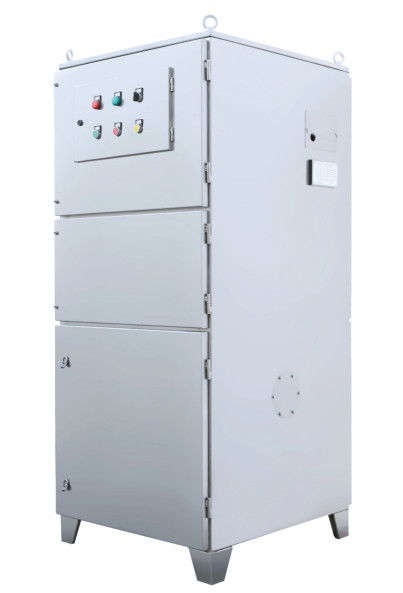

TOUER-15A-G Dust Collector (Stainless Steel) 2.2KW. 380V, 50HZ

TOUER-15A-G Dust Collector (Stainless Steel) 2.2KW. 380V, 50HZ

Place of Origin:

CHINA

পরিচিতিমুলক নাম:

JINWANG

সাক্ষ্যদান:

CE,ISO9001,ISO18000,ISO14000

Model Number:

TOUER-15A-G

আমাদের সাথে যোগাযোগ
একটি উদ্ধৃতি অনুরোধ করুন
পণ্যের বিবরণ
Name:
TOUER-15A-G Dust Collector (Stainless Steel)
Material:
SS304
Fan Pressure:
4000PA
Dust Cleaning Efficiency:
0.18KW
Resistance:
1200Pa
Dust Proof Efficiency:
99.99%
Power:
2.2KW. 380V, 50HZ
External Dimension:
800×700×1600mm (L×W×H)
Weight:
175Kg
পেমেন্ট ও শিপিংয়ের শর্তাবলী
Minimum Order Quantity
1 set
মূল্য
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 Osets per month
সম্পর্কিত পণ্য
আমাদের সাথে যোগাযোগ
যোগাযোগ করুন
পণ্যের বর্ণনা



TOUER-15A-G Dust Collector (Stainless Steel) 2.2KW. 380V, 50HZ



1. Introduction

TOUER-15A-G Dust Collector is a high efficiency purification and dust removal equipment developed for packaging machine. The machine has the advantages of stable technical performance, high fan pressure, beautiful appearance, flexible use, simple dust removal, small occupation area, wide application range and high dust removal efficiency (99.99%). It has an ideal effect on collecting fine and dry non-fiber dust. Especially suitable for all kinds of powder & granule packaging machine, tablet pressing and other dust gas purification.

The dust collector set dust cleaning system, fan, filter, muffler and electronic control device in one, users only need to use a hose to connect to the packaging machine dust removal mouth, plug in the power can be used.

After purification, the air can be directly discharged into the room for circulation, without ventilation heat loss.



2. Working Principle

When the dust comes into the body, big particles can drop into the drawer by its gravity, fine particles will absorb on the filter by the fan, and clean air can be discharged by the filter and use in the room. With the continuous work of the filter, the dust increase on the filter. For the normal operation of the system, the resistant of the duster should keep in 1.2KPA, So high frequency is used in the dust cleaning.



3. Features

3.1 Compact structure and takes less space

3.2 High precision filtering with high efficiency

3.3 Easy maintenance and less work force



4. Main Technical Parameters

1 Flow 400Nm³/h
2 Fan Total Pressure 4000Pa
3 Power Supply 380V, 50Hz/2.2KW
4 Dusting Power 0.18KW
5 Dust Collecting Efficiency ≤99.99%
6 External Dimension 800×700×1600mm (L×W×H)
7 Weight 175KG
